Wave wall model 1052

Wave FRAME 1052 – wall-mounted model

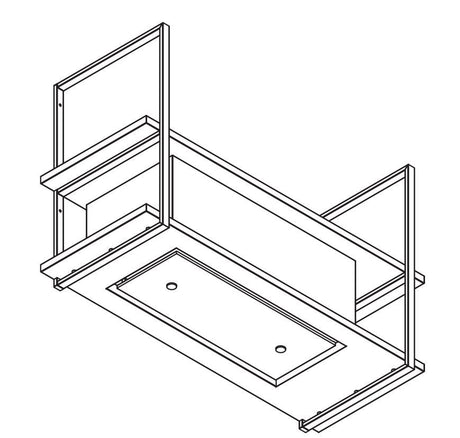

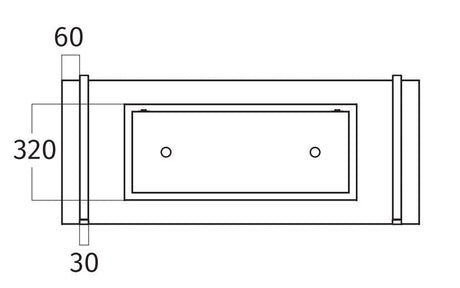

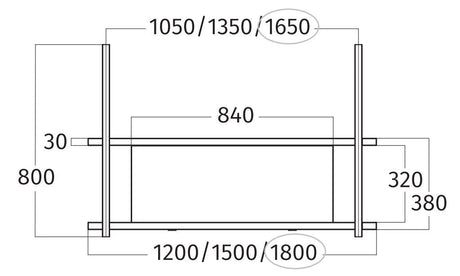

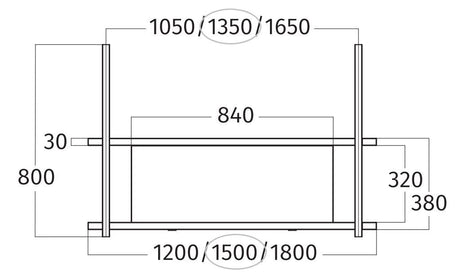

The Wave FRAME 1052 is an open, slender wall-mounted frame with integrated dimmable LED lighting. In this collection you will find the FRAME 1052 with a central extraction unit and the matching wall frame with lighting, without motor.

FRAME with extraction unit

The extraction unit has a fixed internal motor (850 m³/h, 68 dBA) and works by recirculation: the air is filtered and returned clean to the kitchen. Available in 120, 150 and 180 cm.

Wall frame with lighting, without motor

The wall frame shares the same design, but has no motor and no extraction: it provides light only. Combine it with a FRAME with extraction unit in the same colour, for example for a longer or symmetrical arrangement. Available in 120, 150 and 180 cm.

Colours

Choose stainless steel, black (RAL 9017 matt) or a RAL colour of your choice (matt or gloss). You select the colour on the product page.

Mounting and filters

The suspension system is included as standard with every FRAME. Have something of your own in mind, such as a sturdy (book)shelf? For this, separate FRAME mounting brackets are available in 700, 800 or 900 mm height, to be ordered separately. For the extraction unit we recommend a plasma filter: it cleans itself and does not become saturated with normal use, so it is maintenance-free and lasts approx. 12 to 15 years. A carbon filter is the more affordable alternative, and an existing compatible filter can be reused.

Also explore the other FRAME wall-mounted models.
