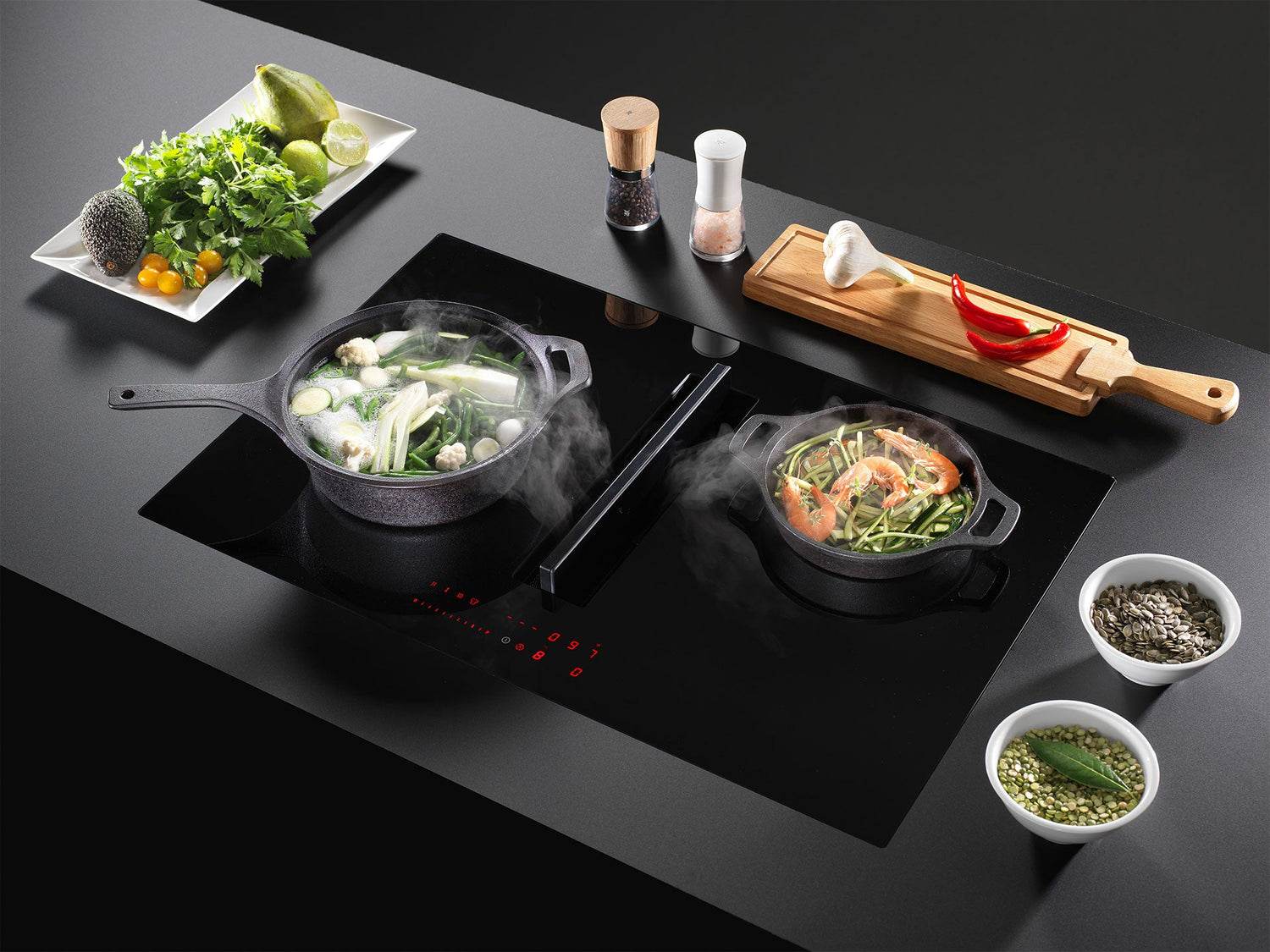

Wave Peyto 4114.04 – 80 cm induction hob with integrated extractor

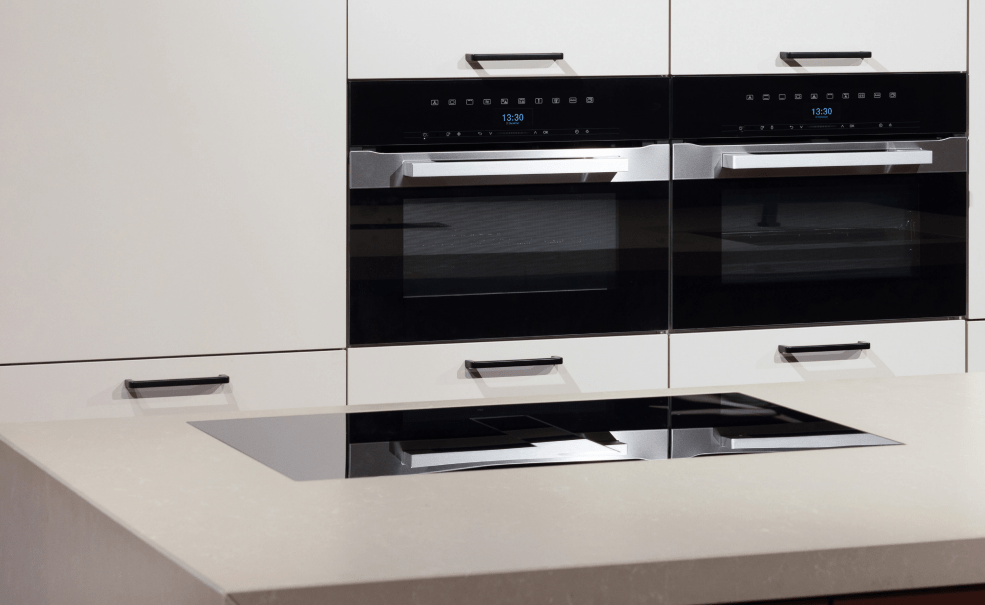

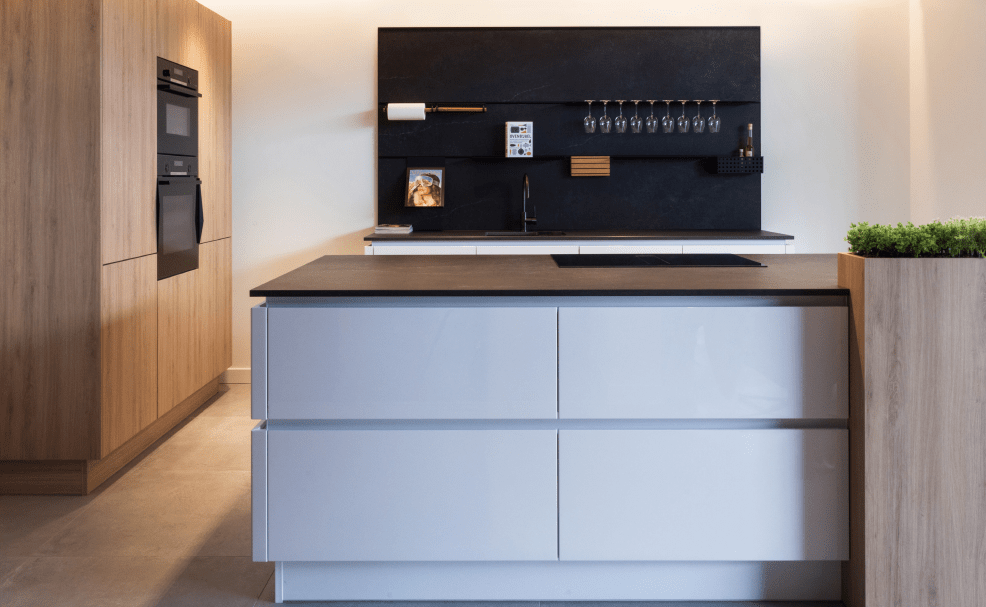

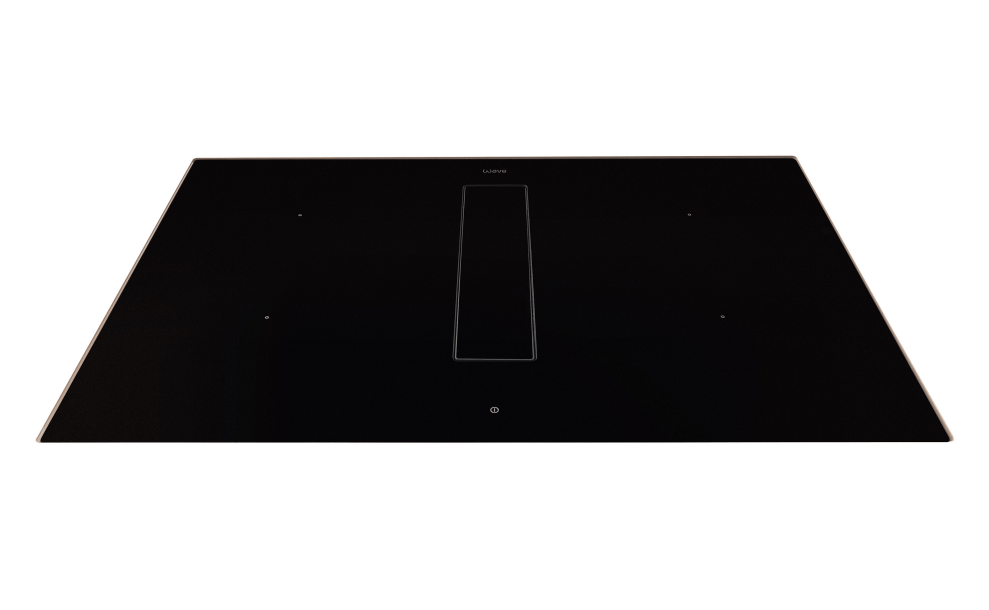

The Wave Peyto 411404 is finished in the refined colour Smoked Silver , a contemporary shade of grey with a metallic touch. This colour fits perfectly with a sleek, industrial or minimalist kitchen design. The hob is 80 cm wide and offers more than enough space to comfortably cook with multiple pans. The completely flat glass ceramic surface is easy to clean and forms a stylish whole with the worktop.
Induction performance of the Peyto 4114-04
The hob is equipped with four powerful cooking zones, each with a boost function. With the red slider switch, you can operate each zone separately via nine settings plus booster. The total connection value is 7.4 kW, suitable for power current (380–415 V, 2N or 3N).

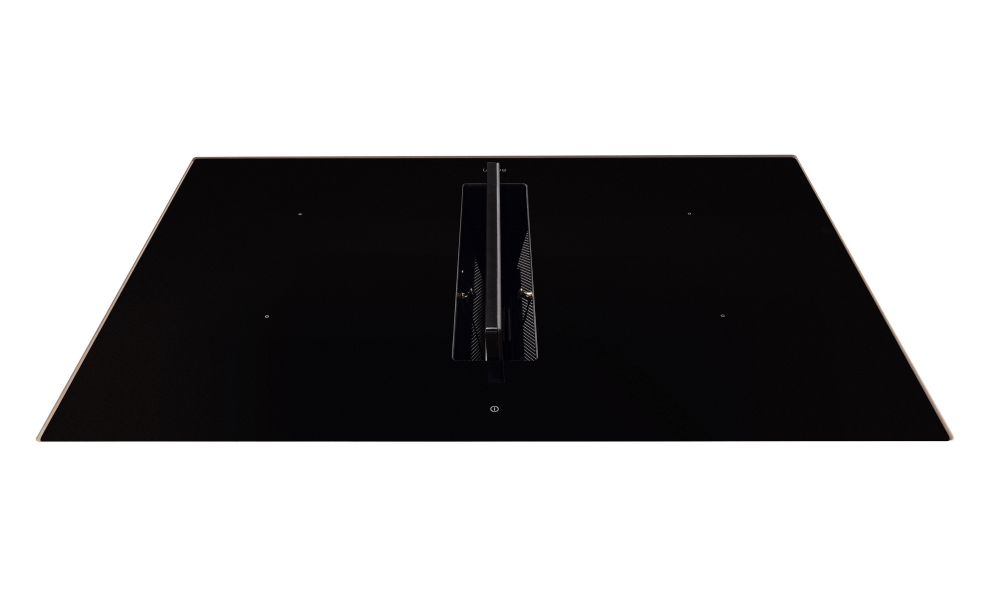

Extraction through the centre of the Wave 4114.04

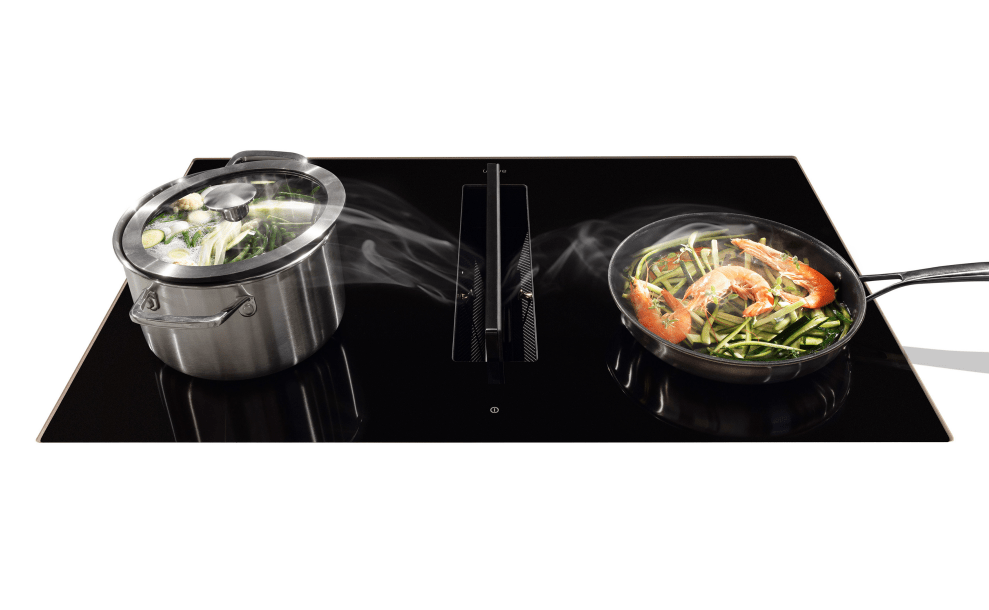

The extractor is integrated in the middle of the hob and sucks vapours directly downwards. The internal motor delivers 700 m³/h and remains quiet in use (max. 62 dB). After cooking, the after-run mode automatically switches on for another five minutes for optimum air purification.
Filter options for the 411404
For those who do not have an external exhaust, there are two suitable filter options: the long-life recirculation filter (9210.01) with a lifespan of approximately three years, or the Plasmafilter-Plus – Flat (99202.04) with a lifespan of 12 to 15 years. Both filters are easy to replace and require little maintenance.
Ease of use and safety of the Wave Peyto 4114.04
The 4114.04 is equipped with a child lock, automatic switch-off and automatic extraction control. You can have the extraction switch on automatically during the cooking process, or manually select the desired setting. Ideal for daily use with maximum control and safety.

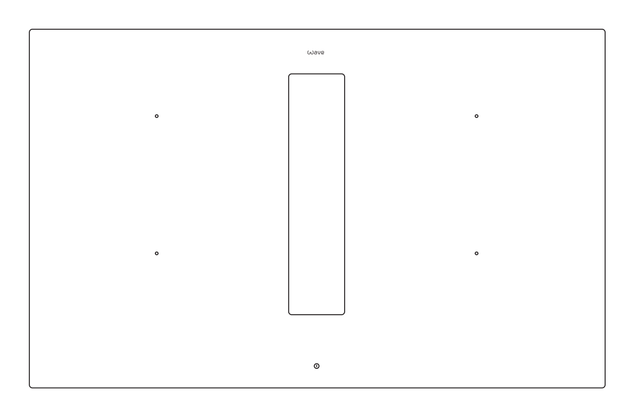

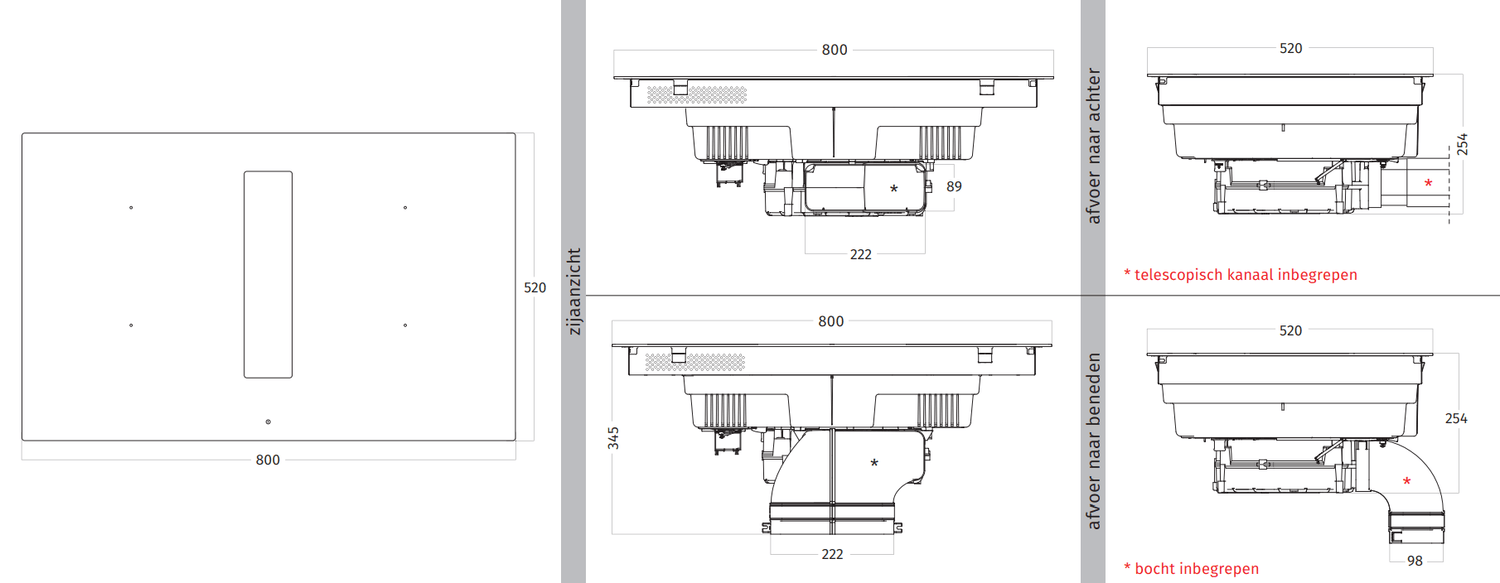

Installation specifications
- cut-out dimensions construction: w 754 x d 494 mm
- flush mounting: w 754 x d 494 mm
- rebate size: 802 x 522 mm – R6 – depth: 6.5 mm
- worktop depth: fits in a worktop with a depth of 600 mm
-
MotorYes
Alphenberg leather in collaboration with Wave
Leather exudes strength, but at the same time has a chic and timeless look, which also looks modern. It fits effortlessly into any interior. Due to its special qualities and properties, leather is suitable for applications on furniture, doors, fireplaces and unexpected design elements, such as in the kitchen. At Alphenberg, everything revolves around the passion for leather, and we are happy to share that passion with you.
Wave works with different materials for our design elements on a daily basis, including leather. In collaboration with Alphenberg, we have developed a unique extraction unit with leather upholstery. A beautiful example of craftsmanship that offers the perfect balance between design and technology, applicable to various models. Alphenberg is the specialist in leather and high-end interior applications, and we are happy to make use of their expertise.
Do you have questions about Wave products? The WKP team is here to help.
You are most welcome in one of our showrooms to discuss with an advisor which extractor hood fits best in your kitchen interior. If you make an appointment in advance, you can be sure that there is plenty of time for you.
Kantoor WKP
Meidoornlaan 52d
4902 SC Oosterhout
T 0162 – 47 26 26
Showroom DTC
Nijverheidscentrum 2
2761 JP Zevenhuizen
* Visits by appointment only
Of course, questions can also be answered by phone. The team can be reached on workdays at 0162-472626. Or visit the Wave support page
An extractor unit can extract cooking fumes outside via a duct and a hole in the wall or roof. But increasingly, you opt for an extractor unit that filters the air and blows it back into the kitchen. The air is then recirculated. In new energy-efficient homes, you are required to work with a recirculating extractor unit, because it uses air (energy) sparingly. If you can choose and opt for recirculation, you do so for three reasons:
- The design of the extractor hood is much more elegant, as there are no large shafts.
- The extractor hood is environmentally friendly, because the warm air stays inside.
- The capacity of the extractor hood with the filters we supplied is good.
To use a recirculating extractor unit:
- Before you start cooking, set the motor to position 1 to create an air flow.
- During cooking you can increase the motor speed to position 2. Do not set it higher, because that does not benefit the filtering. The faster the air flows through the filter, the less time the filter has to purify the air.
- When you have finished cooking, let the motor run on setting 1 for a while.
- Do not turn off the engine until all food has been removed from the kitchen and the dishes have been cleared away.
There are several filters on the market that purify cooking odors. We offer two filters that guarantee that cooking odors are eliminated: a carbon filter and a plasma filter. The difference between the two is explained below.
Recirculating with Carbon
The air is passed through the filter and the carbon binds the unpleasant odours. Once the cooking odours have passed through the filter, they are largely free of oil, grease and odours and the purified air is blown back into the room. However, the absorbed oil and grease particles ensure that the filter eventually becomes clogged and the carbon does not continue to work indefinitely. This means that the filter must be replaced regularly. If you have a Wave carbon filter, it is recommended to do this after 2.5 to 3 years.
Recirculating with Plasma
The electronic plasma filter is placed on the engine exhaust nozzle and has two functions:
-
On the one hand, it removes odors using a plasma generator. As soon as the air enters the filter, a sensor detects the air flow and activates the plasma generator. Plasma eliminates odors immediately. The polluted air (grease, pollen, odors, etc.) is converted into clean air and CO₂ by a natural reaction. The recirculated clean air is then blown back into the room. Plasma changes the DNA structure of a scent, so to speak.
-
In addition to odor removal, the plasma filter also eliminates grease. Grease particles that are not retained by the grease filter are captured in the plasma filter. The walls of the filter, which are under high voltage as long as the hood is on, store the grease and eliminate it bit by bit. It is very important to leave the hood on for a while after cooking to capture the last residual odors and remove the grease in the filter. This can vary from half an hour to an hour, depending on your cooking habits. By running the hood after cooking, you prevent the filter from becoming saturated and odors from passing through the plasma filter. With normal use, this filter can last about 12 to 15 years without maintenance. Thanks to the conical interior, there is almost no resistance and the filter even has a sound-absorbing effect.
