Wave 8663.302 STANDARD X ceiling unit 90 x 50 cm - RAL 9017 matt (black) - motorless - LED
Heb je een vraag hierover?
Wave 8663.302 STANDARD X ceiling unit 90 x 50 cm - RAL 9017 matt (b...
Wave 8663.302 STANDARD X 90x50cm ceiling unit RAL 9017 matt (black)
motorless: can be combined with associated internal or external motors
fixed internal motor: 850 m3/h - 58 dBA - max. 250 W - exhaust ∅150 mm
internal removable motor: 850 m3/h - 58 dBA - max. 250 W - exhaust ∅150 mm
extra flat internal motor: 615 m3/h - 67 dBA - max. 270 W - exhaust 230 x 80 mm
remote control: 3 settings + intensive + timer
Grease filters: 2 x aluminium filters + edge extraction
lighting: 2 x 4.5 W dimmable LED - 2700 Kelvin centre to centre 450mm
net weight: approx. 16 kg (motorless) - approx. 20 to 25 kg (internal motor)
Options 8663.302 STANDARD X 90 x 50 cm ceiling unit RAL 9017 matt (black)
recirculation based on carbon filter or plasma filter
associated external motors 6636, 6637, 6639, 6694 and 6697 see chapter external motors
colour based on RAL, NCS or individual custom colour
No extra charge without lighting, please indicate this in the comments field in the shopping cart.
Additional information Wave 8663.302 STANDARD X 90x50cm RAL 9017 matt (black) ceiling unit

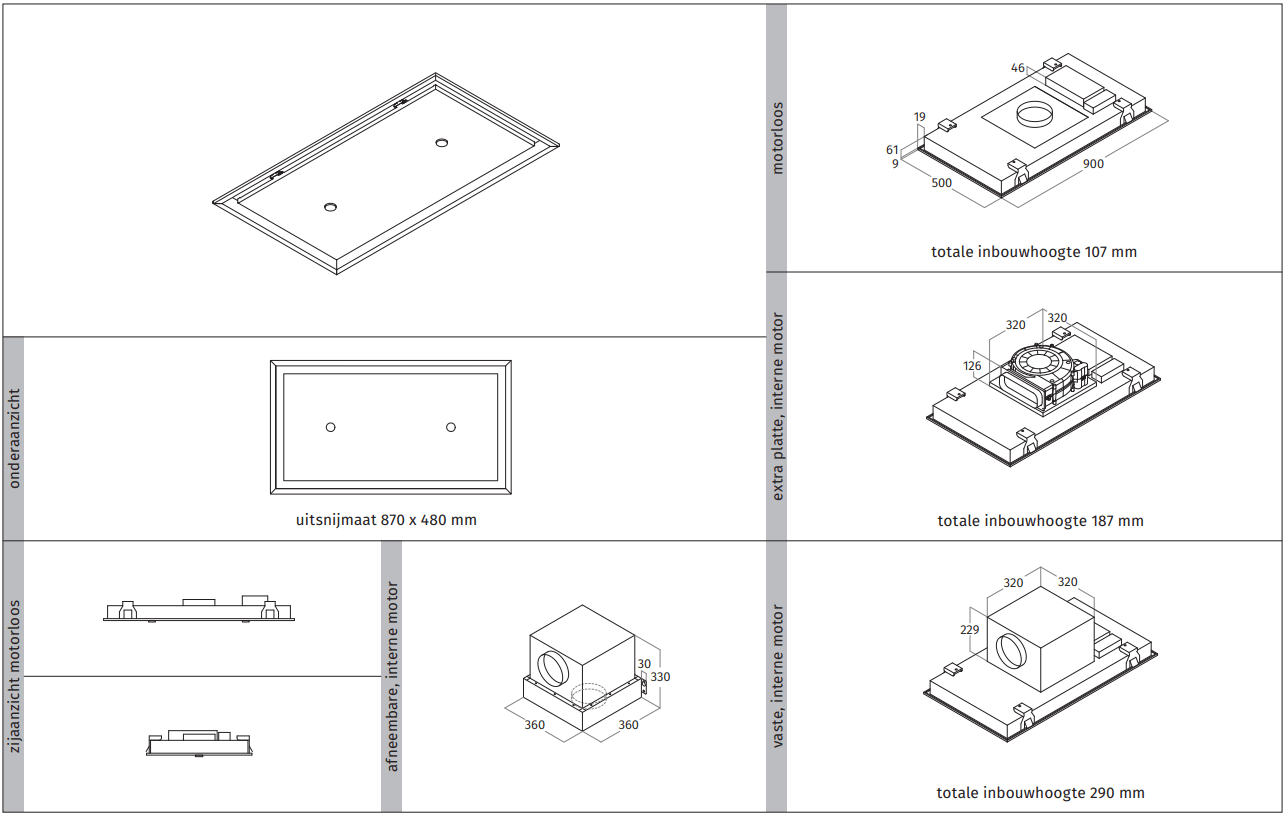

cutting dimensions: 870 x 480 mm
the internal motor can be turned with discharge to 4 sides; discharge upwards: price and drawing on request
internal detachable motor can be used as external channel motor, this has 5 meter cord. Longer lengths on request.
NOTE: supply with internal, removable motor is at the bottom; discharge at the side installation of tight ducts after installation of the ceiling unit with or without internal fixed motor is possible, using part 6000312 , System 150
Alphenberg leather in collaboration with Wave
Leather exudes strength, but at the same time has a chic and timeless look, which also looks modern. It fits effortlessly into any interior. Due to its special qualities and properties, leather is suitable for applications on furniture, doors, fireplaces and unexpected design elements, such as in the kitchen. At Alphenberg, everything revolves around the passion for leather, and we are happy to share that passion with you.
Wave works with different materials for our design elements on a daily basis, including leather. In collaboration with Alphenberg, we have developed a unique extraction unit with leather upholstery. A beautiful example of craftsmanship that offers the perfect balance between design and technology, applicable to various models. Alphenberg is the specialist in leather and high-end interior applications, and we are happy to make use of their expertise.
Do you have questions about Wave products? The WKP team is here to help.
You are most welcome in one of our showrooms to discuss with an advisor which extractor hood fits best in your kitchen interior. If you make an appointment in advance, you can be sure that there is plenty of time for you.
